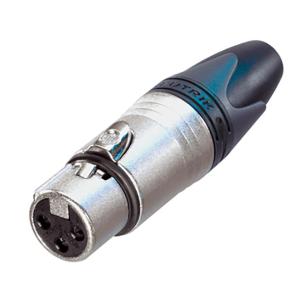

Stik XLR Hun Metal
58,00
DKK for 1 stk.
Se pris uden moms
Pris uden moms 46,40 DKK
Dette produkt har ekstra afklipningsgebyr på DKK 0,00
Benyt prismatch - tryk her
Om produktet
3-polig XLR-hona
Nickelhus och silverkontakter
Nickelhus och silverkontakter
Emballagetype:
Plastikpose
Farve:
Sølv
Indhold:
1 stk.
Kontakternes stiktype:
Hun
Stikdesign:
Lige
Strøm:
16 A
Temperaturområde:
-30 - 80 °C
Tilslutnings Type:
XLR 3-Pin
Tilslutningsbelægning:
Nikkelplateret
Vare nr.:
NTR-NC3FXX
EAN nr:
7613187000027
Enhed:
stk.
Min køb:
1
Leveringstid:
3-5 dage
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Product
Connector Type: XLR
Gender: female
Electrical
Capacitance between contacts: ≤: 4 pF
Contact resistance: ≤: 3 mΩ:
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GΩ: (initial)
Insulation resistance: > 1 GΩ: (after damp heat test)
Rated current per contact: 16 A
Rated voltage: 50 V
Mechanical
Cable O.D.: 3.5 - 8.0 mm
Insertion force: ≤: 20 N
Withdrawal force: ≤: 20 N
Lifetime: > 1000 mating cycles
Wire size: max. 2.5 mm²
Wire size: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Material
Boot: Polyuretan
Bushing: Polyamide (PA 6 15% GR)
Contact plating: 2 µm Ag
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Shell: plating Nickel
Strain relief: Polyacetal (POM)
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Product
Connector Type: XLR
Gender: female
Electrical
Capacitance between contacts: ≤: 4 pF
Contact resistance: ≤: 3 mΩ:
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GΩ: (initial)
Insulation resistance: > 1 GΩ: (after damp heat test)
Rated current per contact: 16 A
Rated voltage: 50 V
Mechanical
Cable O.D.: 3.5 - 8.0 mm
Insertion force: ≤: 20 N
Withdrawal force: ≤: 20 N
Lifetime: > 1000 mating cycles
Wire size: max. 2.5 mm²
Wire size: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Material
Boot: Polyuretan
Bushing: Polyamide (PA 6 15% GR)
Contact plating: 2 µm Ag
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Shell: plating Nickel
Strain relief: Polyacetal (POM)
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
